Liquid Cooled Outdoor Battery Cabinet
ODC-LF344
A DC battery only system featuring an integrated design housed within an outdoor cabinet, seamlessly incorporating a temperature control system and battery management system. This design significantly enhances energy density. Moreover, in conjunction with an advanced liquid cooling system for the batteries, the product boasts better stability, facilitates expansion, and offers greater flexibility in configuration with energy capacity options from 215 kWh to 344 kWh.
Product Features
AI-BESS can provide a one-stop zero carbon energy solution, allowing everyone to enjoy a better life under green electricity
Integrated Cabinet Design
Highly integrated all-in-one design, the system is modular and can be expanded using parallel systems for a variety of application scenarios
Increased System Stability
Multiple operation modes to choose from, supports simultaneous connections of load, batteries, power grid, diesel generators, and photovoltaics
International Certifications
Certified to European and American battery standards such as IEC and UL
Standard Modular Design
Using a standardized modular design, this system can be expanded easily by adding cabinets in parallel to reach the desired energy capacity for many applications. Supports 1000 and 1500VDC systemsApplication Scenarios
AI-BESS can provide a one-stop zero carbon energy solution, allowing everyone to enjoy a better life under green electricity

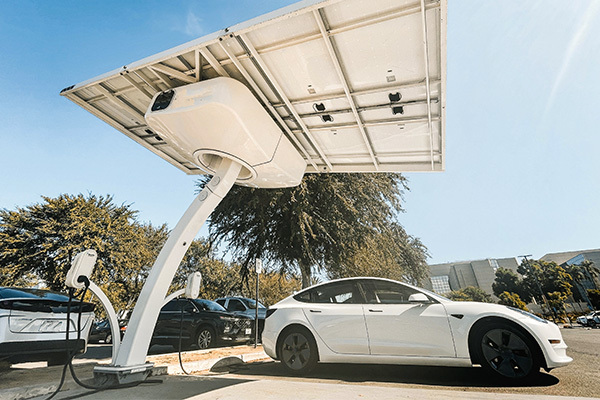

Integrated Light Storage And Charging
High Consumption Factory

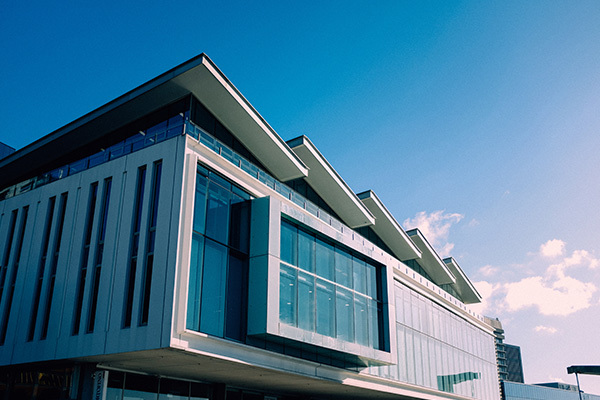

Residential Community

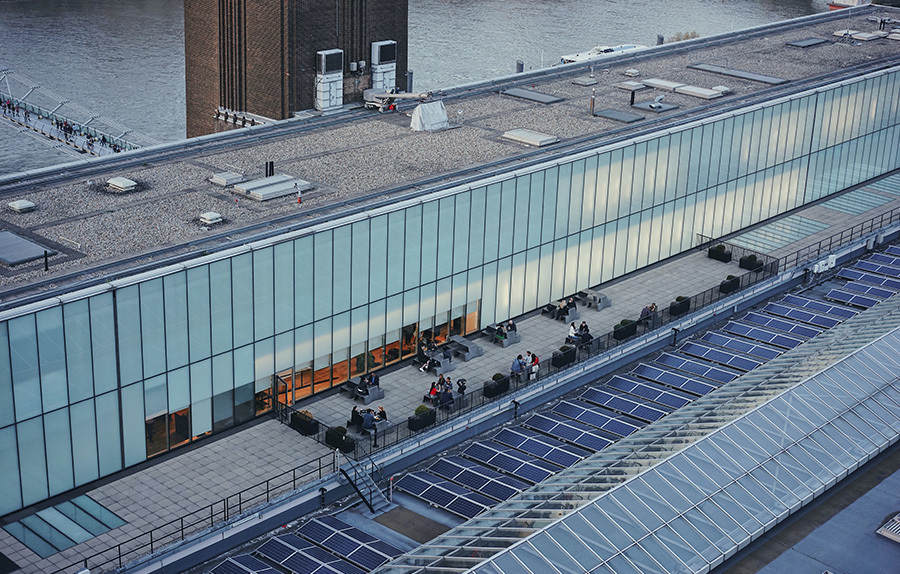

Commercial Centre
Product Features
| Ürün Modeli | ODC-LF344EYA-01 |
|---|---|
| Battery Cell | 3.2V/280Ah |
| Paralel-Seri Modu | 1P384S |
| Nominal Enerji | 344kWh |
| Nominal Gerilim | 1228.8V |
| Gerilim Aralığı | 1075.2-1382.4V |
| Şarj ve Deşarj Yöntemleri | CC/CCCV/CP/CPCV |
| Standart Şarj Oranı | 0.5P |
